[Tugas 3 Pemrograman Web - Codepostal - Website Pencari Kode Pos Melalui Provinsi, Kota/Kabupaten, Kecamatan, Kelurahan]
- Hilmi Zharfan Rachmadi
- 5025201268
- Pemrograman Web Kelas B
Berikut adalah sumber yang saya gunakan untuk database Provinsi, Kota/Kabupaten, Kecamatan, Kelurahan dan Kode Pos: edwin/database-kodepos-seluruh-indonesia: SQL Dump untuk data kodepos seluruh Indonesia (MySQL) (github.com)
Dengan bantuan Notepad++, Database ini saya konversi menjadi file .csv
Dalam membuat dependent dropdown yang datanya di-populate dari array, saya menggunakan referensi video berikut: (125) HTML JavaScript Dependent Dropdown List, Cascading Unlimited Levels - e.2 p.1 - YouTube
Kode HTML:
<!DOCTYPE html>
<html lang="en">
<head>
<title>Codepostal</title>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<link rel="stylesheet" type="text/css" href="assets/css/style.css">
<link rel="preconnect" href="https://fonts.gstatic.com">
<!-- Fonts -->
<link href='https://fonts.googleapis.com/css?family=Raleway:100,200,300,400,500,600,700,800,900' rel='stylesheet'>
<!-- Icons -->
<link rel="stylesheet" href="https://cdnjs.cloudflare.com/ajax/libs/font-awesome/6.2.0/css/all.min.css" integrity="sha512-xh6O/CkQoPOWDdYTDqeRdPCVd1SpvCA9XXcUnZS2FmJNp1coAFzvtCN9BmamE+4aHK8yyUHUSCcJHgXloTyT2A==" crossorigin="anonymous" referrerpolicy="no-referrer"
/>
</head>
<body>
<!----Header Section Start---->
<div class="header">
<h2>CODE<span>POSTAL</span></h2>
<h3 id="description">Mencari Kode Pos berdasarkan Provinsi, Kota/Kabupaten, Kecamatan, dan Kelurahan</h3>
</div>
<!-- Header Section End-->
<!----Content Section Start---->
<section>
<div class="container">
<div class="card">
<div class="card-content">
<div class="content">
<!----Dropdown Section Start---->
<div>
<div class="dropdown-menu" id="provinsi-drop">
<label class="label">Provinsi</label>
<div class="control">
<div class="select is-rounded" id="select-provinsi">
<select id="provinsi"> </select>
</div>
</div>
</div>
<div class="dropdown-menu" id="kabupaten-drop">
<label class="label">Kota atau Kabupaten</label>
<div class="control">
<div class="select is-rounded" id="select-kotakab">
<select id="kabupaten"></select>
</div>
</div>
</div>
<div class="dropdown-menu" id="kecamatan-drop">
<label class="label">Kecamatan</label>
<div class="control">
<div class="select is-rounded" id="select-kecamatan">
<select id="kecamatan"></select>
</div>
</div>
</div>
<div class="dropdown-menu" id="kelurahan-drop">
<label class="label">Kelurahan</label>
<div class="control">
<div class="select is-rounded" id="select-kecamatan">
<select id="kelurahan"></select>
</div>
</div>
</div>
<div class="dropdown-menu" id="kodepos-drop">
<label class="label">Hasil Kode Pos</label>
<div class="control">
<div class="select is-rounded" id="select-kecamatan">
<select id="kodepos"></select>
</div>
</div>
</div>
</div>
<!----Dropdown Section End---->
</div>
</div>
</div>
</div>
</section>
<!----Content Section End---->
<!----Footer Section Start---->
<div class="footer">
</div>
<!-- Footer Section End-->
<script src="assets/js/main.js"></script>
</body>
</html>
Kode CSS:
* {
padding: 0;
margin: 0;
font-family: 'Raleway', sans-serif;
box-sizing: inherit;
}
html {
box-sizing: border-box;
}
/* Header */
.header {
background-color: transparent;
padding: 20px 40px;
}
.header h2 {
margin: 0;
font-weight: 800;
font-size: 4.5rem;
color: white;
text-align: center;
}
.header h2 span {
color: #fb7500;
}
#description {
margin-top: -15px;
text-align: center;
color: white;
font-weight: 400;
font-size: 0.75rem;
}
/* Content */
body {
background-image: url(../img/bg.png);
color: #4a4a4a;
font-size: 1rem;
font-weight: 400;
line-height: 1.5
}
.section {
padding: 3rem 1.5rem
}
.container {
flex-grow: 1;
margin: 0 auto;
margin-top: 20px;
margin-bottom: -25px;
position: relative;
width: auto
}
.card {
background: rgba(0, 0, 0, 0.7);
border-radius: .25rem;
box-shadow: 0 .5em 1em -.125em rgba(10, 10, 10, .1), 0 0 0 1px rgba(10, 10, 10, .02);
color: #4a4a4a;
padding-left: 1rem;
padding-top: 1rem;
padding-bottom: 1rem;
max-width: 100%;
overflow: hidden;
position: relative
}
.card-content {
padding: 1.5rem
}
/* Dropdown */
#kabupaten-drop {
margin-top: 1rem !important
}
#kecamatan-drop {
margin-top: 1rem !important
}
#kelurahan-drop {
margin-top: 1rem !important
}
#kodepos-drop {
margin-top: 1rem !important
}
.select:not(.is-multiple):not(.is-loading):after {
border: 3px solid transparent;
border-radius: 2px;
border-right: 0;
border-top: 0;
content: " ";
display: block;
height: .625em;
margin-top: -.4375em;
pointer-events: none;
position: absolute;
top: 50%;
transform: rotate(-45deg);
transform-origin: center;
width: .625em
}
.select {
display: inline-block;
max-width: 100%;
position: relative;
vertical-align: top
}
.select select {
-moz-appearance: none;
-webkit-appearance: none;
align-items: center;
border: 1px solid transparent;
border-radius: 4px;
box-shadow: none;
display: inline-flex;
font-size: 1rem;
height: 2.5em;
justify-content: flex-start;
line-height: 1.5;
padding: calc(.5em - 1px) calc(.75em - 1px);
position: relative;
vertical-align: top;
background-color: black;
border-color: #dbdbdb;
border-radius: 4px;
color: white;
}
.select:not(.is-multiple):not(.is-loading):after {
border-color: #fb7500;
right: 1.125em;
z-index: 4
}
.select.is-rounded select {
border-radius: 290486px;
padding-left: 1em
}
.select select:not([multiple]) {
padding-right: 2.5em
}
.option {
/* Whatever color you want */
background-color: #82caff;
}
.label {
color: #fb7500;
display: block;
font-size: 1rem;
font-weight: 600;
}
.label:not(:last-child) {
margin-bottom: .5em
}
*,
:after,
:before {
box-sizing: inherit
}
/* Footer */
.footer {
position: absolute;
bottom: 0;
width: 100%;
height: 1.5rem;
background: #fb7500;
display: flex;
flex-direction: column;
align-items: center;
justify-content: center;
}
/* Responsive */
@media print,
screen and (min-width:769px) {
.columns:not(.is-desktop) {
display: flex
}
}
@-webkit-keyframes spinAround {
0% {
transform: rotate(0)
}
to {
transform: rotate(359deg)
}
}
@keyframes spinAround {
0% {
transform: rotate(0)
}
to {
transform: rotate(359deg)
}
}
@media screen and (min-width:1024px) {
.container {
max-width: 960px
}
}
@media screen and (min-width:1216px) {
.container:not(.is-max-desktop) {
max-width: 1152px
}
}
@media screen and (min-width:1408px) {
.container:not(.is-max-desktop):not(.is-max-widescreen) {
max-width: 1344px
}
}
Kode JS:
// Class for dropdown menus
class DropDown {
constructor(data) {
this.data = data;
this.targets = [];
}
// Filter dropdown data based on previous levels
filterData(filtersAsArray) {
return this.data.filter(r => filtersAsArray.every((item, i) => item === r[i]));
}
// Get unique values
getUniques(dataAsArray, index) {
const uniqueOptions = new Set();
dataAsArray.forEach(r => uniqueOptions.add(r[index]));
return [...uniqueOptions];
}
populateDropdown(el, listAsArray) {
el.innerHTML = "";
listAsArray.forEach(item => {
const option = document.createElement("option");
option.textContent = item;
el.appendChild(option);
});
}
createPopulateDropdownFunction(el, elsDependsOn) {
return () => {
const elsDependsOnValues = elsDependsOn.length === 0 ? null : elsDependsOn.map(depEl => depEl.value);
const dataToUse = elsDependsOn.length === 0 ? this.data : this.filterData(elsDependsOnValues);
const listToUse = this.getUniques(dataToUse, elsDependsOn.length);
this.populateDropdown(el, listToUse);
}
}
add(options) {
const el = options.target;
const elsDependsOn = options.dependsOn.length === 0 ? [] : options.dependsOn;
const eventFunction = this.createPopulateDropdownFunction(el, elsDependsOn);
const targetObject = { el: el, elsDependsOn: elsDependsOn, func: eventFunction };
targetObject.elsDependsOn.forEach(depEl => depEl.addEventListener("change", eventFunction));
this.targets.push(targetObject);
return this;
}
initialize() {
this.targets.forEach(t => t.func());
return this;
}
quickDropDown(arrayOfIds) {
arrayOfIds.forEach((item, i) => {
const option = { target: item, dependsOn: arrayOfIds.slice(0, i) };
this.add(option);
});
this.initialize();
return this;
}
}
// Postal code data taken from a database in github
var postalData = [
["DKI JAKARTA", "JAKARTA PUSAT", "GAMBIR", "GAMBIR", "10110"],
["DKI JAKARTA", "JAKARTA PUSAT", "GAMBIR", "KEBON KELAPA", "10120"],
["DKI JAKARTA", "JAKARTA PUSAT", "GAMBIR", "PETOJO UTARA", "10130"],
["DKI JAKARTA", "JAKARTA PUSAT", "GAMBIR", "DURI PULO", "10140"],
["DKI JAKARTA", "JAKARTA PUSAT", "GAMBIR", "CIDENG", "10150"],
["DKI JAKARTA", "JAKARTA PUSAT", "GAMBIR", "PETOJO SELATAN", "10160"],
["DKI JAKARTA", "JAKARTA PUSAT", "TANAH ABANG", "BENDUNGAN HILIR", "10210"],
["DKI JAKARTA", "JAKARTA PUSAT", "TANAH ABANG", "KARET TENGSIN", "10220"],
["DKI JAKARTA", "JAKARTA PUSAT", "TANAH ABANG", "KEBON MELATI", "10230"],
["DKI JAKARTA", "JAKARTA PUSAT", "TANAH ABANG", "KEBON KACANG", "10240"],
["DKI JAKARTA", "JAKARTA PUSAT", "TANAH ABANG", "KAMPUNG BALI", "10250"],
["DKI JAKARTA", "JAKARTA PUSAT", "TANAH ABANG", "PETAMBURAN", "10260"],
["DKI JAKARTA", "JAKARTA PUSAT", "TANAH ABANG", "GELORA", "10270"],
["DKI JAKARTA", "JAKARTA PUSAT", "MENTENG", "MENTENG", "10310"],
["DKI JAKARTA", "JAKARTA PUSAT", "MENTENG", "PEGANGSAAN", "10320"],
["DKI JAKARTA", "JAKARTA PUSAT", "MENTENG", "CIKINI", "10330"],
["DKI JAKARTA", "JAKARTA PUSAT", "MENTENG", "KEBON SIRIH", "10340"],
["DKI JAKARTA", "JAKARTA PUSAT", "MENTENG", "GONDANGDIA", "10350"],
["DKI JAKARTA", "JAKARTA PUSAT", "SENEN", "SENEN", "10410"],
["DKI JAKARTA", "JAKARTA PUSAT", "SENEN", "KWITANG", "10420"],
["DKI JAKARTA", "JAKARTA PUSAT", "SENEN", "KENARI", "10430"],
["DKI JAKARTA", "JAKARTA PUSAT", "SENEN", "PASEBAN", "10440"],
["DKI JAKARTA", "JAKARTA PUSAT", "SENEN", "KRAMAT", "10450"],
["DKI JAKARTA", "JAKARTA PUSAT", "SENEN", "BUNGUR", "10460"],
["DKI JAKARTA", "JAKARTA PUSAT", "CEMPAKA PUTIH", "CEMPAKA PUTIH TIMUR", "10510"],
["DKI JAKARTA", "JAKARTA PUSAT", "CEMPAKA PUTIH", "CEMPAKA PUTIH BARAT", "10520"],
["DKI JAKARTA", "JAKARTA PUSAT", "JOHAR BARU", "GALUR", "10530"],
["DKI JAKARTA", "JAKARTA PUSAT", "JOHAR BARU", "TANAH TINGGI", "10540"],
["DKI JAKARTA", "JAKARTA PUSAT", "JOHAR BARU", "KAMPUNG RAWA", "10550"],
["DKI JAKARTA", "JAKARTA PUSAT", "JOHAR BARU", "JOHAR BARU", "10560"],
["DKI JAKARTA", "JAKARTA PUSAT", "CEMPAKA PUTIH", "RAWASARI", "10570"],
["DKI JAKARTA", "JAKARTA PUSAT", "KEMAYORAN", "GUNUNG SAHARI SELATAN", "10610"],
["DKI JAKARTA", "JAKARTA PUSAT", "KEMAYORAN", "KEMAYORAN", "10620"],
["DKI JAKARTA", "JAKARTA PUSAT", "KEMAYORAN", "KEBON KOSONG", "10630"]
];
var level1 = document.getElementById("provinsi");
var level2 = document.getElementById("kabupaten");
var level3 = document.getElementById("kecamatan");
var level4 = document.getElementById("kelurahan");
var level5 = document.getElementById("kodepos");
var dd = new DropDown(postalData).quickDropDown([level1, level2, level3, level4, level5]);
Di atas saya hanya menampilkan beberapa datanya saja, karena data aslinya sangat banyak, mencapai sekitar 81000.

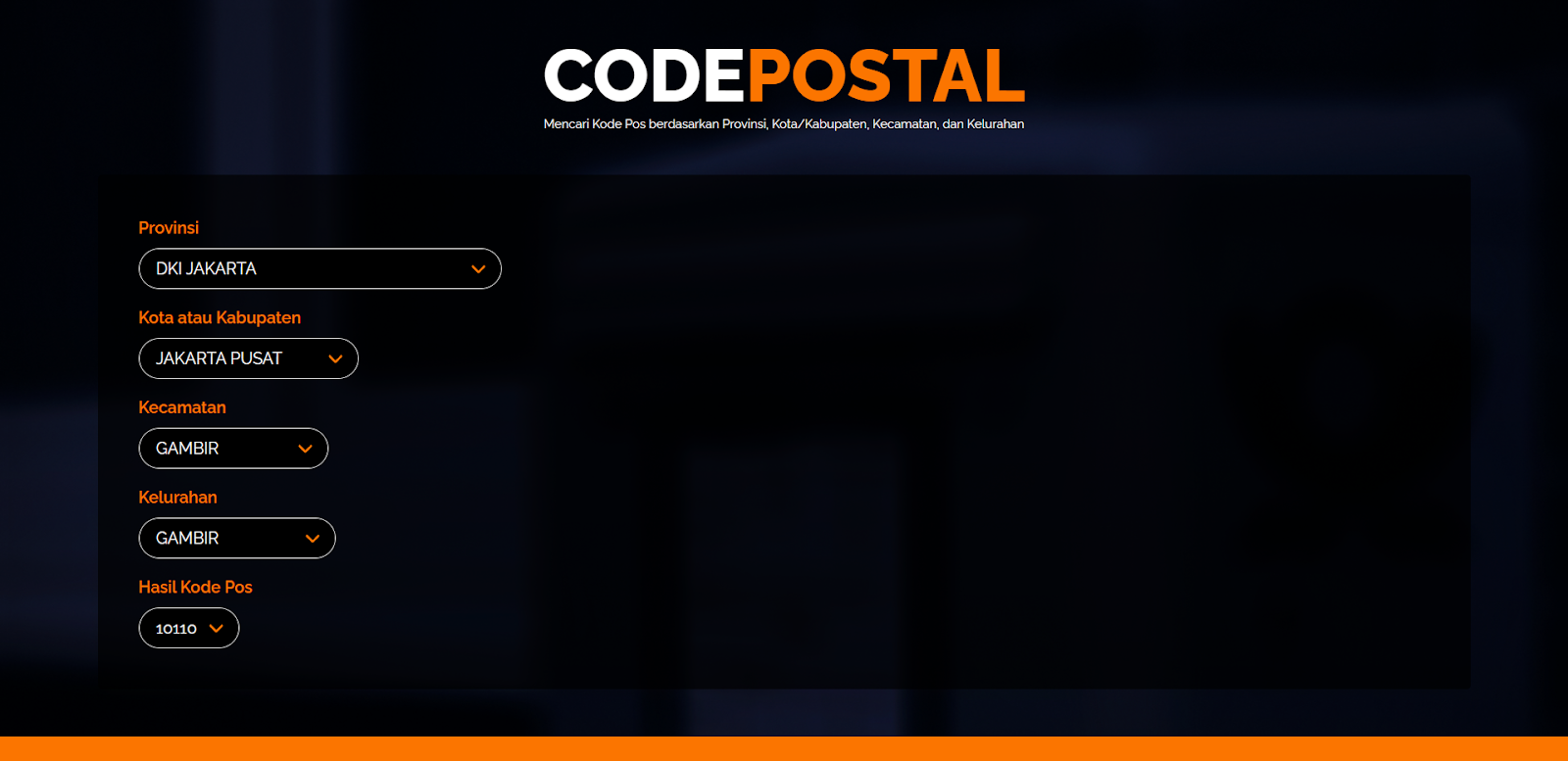

Berikut adalah tampilan website Codepostal:
Website sudah di-deploy dan dapat dikunjungi melalui link berikut: Codepostal (hilmizr.github.io)
Link Repository: https://github.com/hilmizr/codepostal.git
